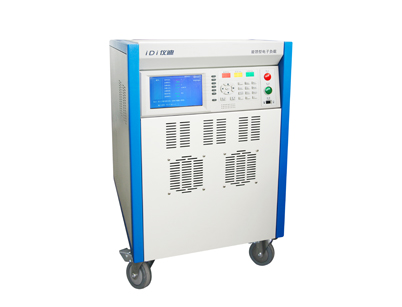

IDI71010 Regenerative AC Electronic Load
Function Features
1.Reduce electric energy loss, feedback over 90% of output electricenergy to grid;
2. Reduce heat dissipation expense and labor costs;
3.Small in size.High-frequency transformer isolator, with inner protection function of grid;
4. A variety of loading options, constant current, constant power, constant resistance;
5. Simulate resistive load, inductive load, capacitiveload and mixed load;
6. 1024*600 color LCD display;
7. Full numeric keyboard, numbers and English input;
8. Multiple units into a high - power electronic load.
Typical Applications
Assuming that the enterprise will consume 1000 kilowatt hours ofelectricity every day when using resistance to
carry out on load aging,according to the calculation of the average recovery efficiency of IDI RegenerativeAC
Electronic Load of 90%, the enterprise can save 900 kilowatt hours ofelectricity every day when using IDI
Regenerative AC Electronic Load, whichgreatly saves the cost of electricity consumption and contributes to
energyconservation and emission reduction.
