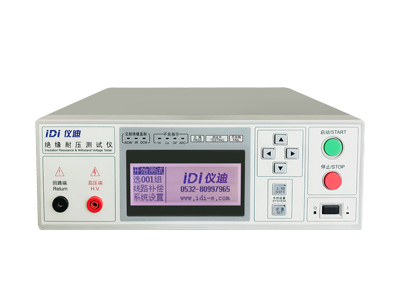

IDI616XB Series
Insulation Resistance & Withstand Voltage Tester
? Meet requirements in CCC, IEC, EN, VDE, BS, GS, UL and other general electrical safety standard requirements;
? High test precision. Basic precision of safety test is up to 1%;
? Test voltage can be controlled to ramp and descent (Time setting is adjustable), so as to meet different test demands.
? Have high voltage electric shock circuit, real-time detection circuit, prevent to get an electric shock damage, to ensure
the safety of personnel;
? Key indicators can be set with high and low limit. Automatic diagnosis helps to prevent missed test;
? There are 10 test memories, and each memory contains 8 test steps. Test can be taken in single step or continuous test,
available for test after second startup.
? Charge low function. Detect whether the circuit is broken and improve the reliability of test;
? LCD display, intelligent analysis, audible and visible alarm.
? Circuit offset function.
? Upper computer function, massive data storage record (optional);
? PLC interface, alarm lamp interface (optional), RS232 communication function (optional RS485), ARC (optional) and other
interface functions are rich to meet the requirements of automatic test.
