1. 8 in1 function: AC withstand voltage, DC withstand voltage, insulation resistance, grounding resistance, leakage current, power, low voltage, LN circuit detection;
2. High test precision: Basic accuracy of safety test is 1%, power test is 0.2%;
3. Meet the CCC, IEC, EN, VDE, BS, UL, JIS and other electrical safety standard, satisfy the electric vehicles, medical equipment, household appliances, lamps and lanterns, information technology, audio and video equipment, dental medical, power grid, photovoltaic and laboratory test requirements;
4. Fast test: support ground and withstand voltage/insulation parallel test, leakage and power parallel test; Optional ground, withstand voltage and power parallel test;
5. Optional double location serial test, the double location parallel test;
6. Withstand voltage test with ARC detection, and can set the starting voltage; DC withstand voltage and insulation can set Charge Low Current and Ramp High Current; Grounding test can be converted into voltage display; Leakage test can be set to test probe position, the test power supply condition, support model of RMS, peak testing; Power support standby power testing, support for multiple file power test, the power factor can be opened, upper and lower limit Settings;
7. Protection function: When the DC withstand voltage test, DC high voltage can quickly discharge to avoid being tested on the residual voltage, caused by electric shock danger; Have high voltage electric shock circuit, real-time detection circuit, prevent to get an electric shock damage, to ensure the safety of personnel;
8. Boot intelligent detection: automatically identify whether the instrument output is normal, to ensure the reliability of the test.
9. Input smart reminder: automatically record all commonly used setup parameters, and intelligently fast input;
10. USB interface: quickly copy setup parameters, output test results, online upgrade procedures, etc.;
11. Support bar code scanning: achieve rapid choose test group and data storage;

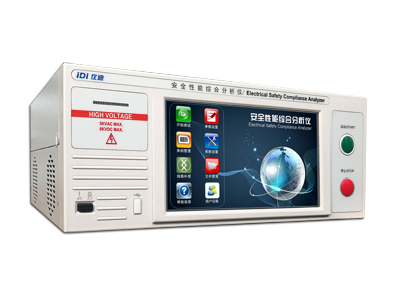

12. 10.2” full-color touch screen, beautiful interface, convenient operation.
