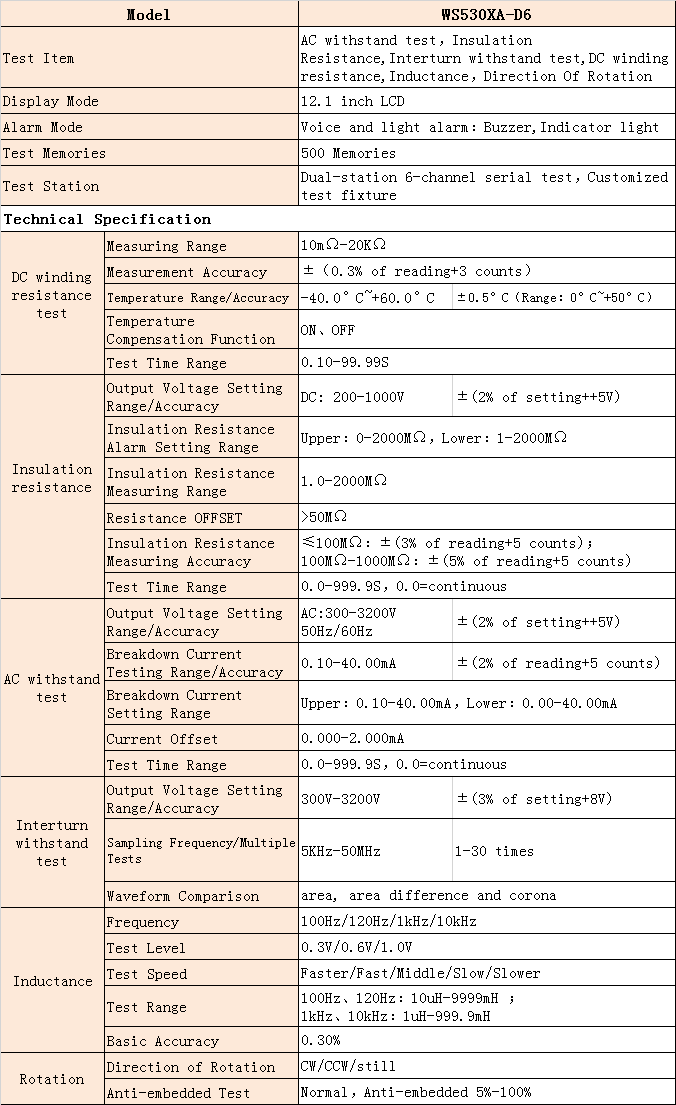

WS530X Series
MOTOR AUTOMATIC TESTER
1、Test: AC withstand test, Insulation Resistance, Interturn withstand test, DC winding resistance, Inductance, Direction
Of Rotation, AC resistance, DC withstand test.
2、 High test precision. Basic precision of safety test is up to 1%.
3、Fast testing speed. The advanced double-station testing technology is adopted. It can quickly measure the parameters of
the tested body to meet the requirements of the production line for rapid testing, leading the test speed of the same
industry.
4、Reliable operation. A variety of anti-interference measures are adopted in the instrument circuit with strong anti-
interference ability. The sinusoidal pulse width modulation (SPWM) technology is used to generate 50 Hz or 60 Hz standard
sine wave, which is driven by high-power MOS transistor to realize the non-contact regulation of high voltage and large
current. At the same time, it has hardware and software protection, which greatly improves the reliability of the instrument.
5、Use safety. Automatic overvoltage and overcurrent protection make it safer to use.
6、Function of self checking on the machine.It is convenient for the operator to judge the current state of the tester.
7、Key indicators can be set with high and low limit. Automatic diagnosis helps to prevent missed test; intelligent
analysis on failure test as well as audible and visual alarm can be provided.
8、A file has 500 test groups, eight test steps, which can be copied quickly between test groups; multiple files can be
added.
9、It has three start-up modes: button, remote control and sliding cover, which can meet different working requirements.
10、Fixture: customized fixture device to adapt the different tested stator.
11、Interface functions are rich to meet the requirements of automatic test.
12、Circuit offset function.
13、12.1 inch LCD screen, intelligent analysis, sound and light alarm.
14、It adopts touch screen control and has good man-machine interface.
